- SKU: FJS/STM+70AASSS
- VENDOR: Bellevue
- TYPE: Pivot Hinge

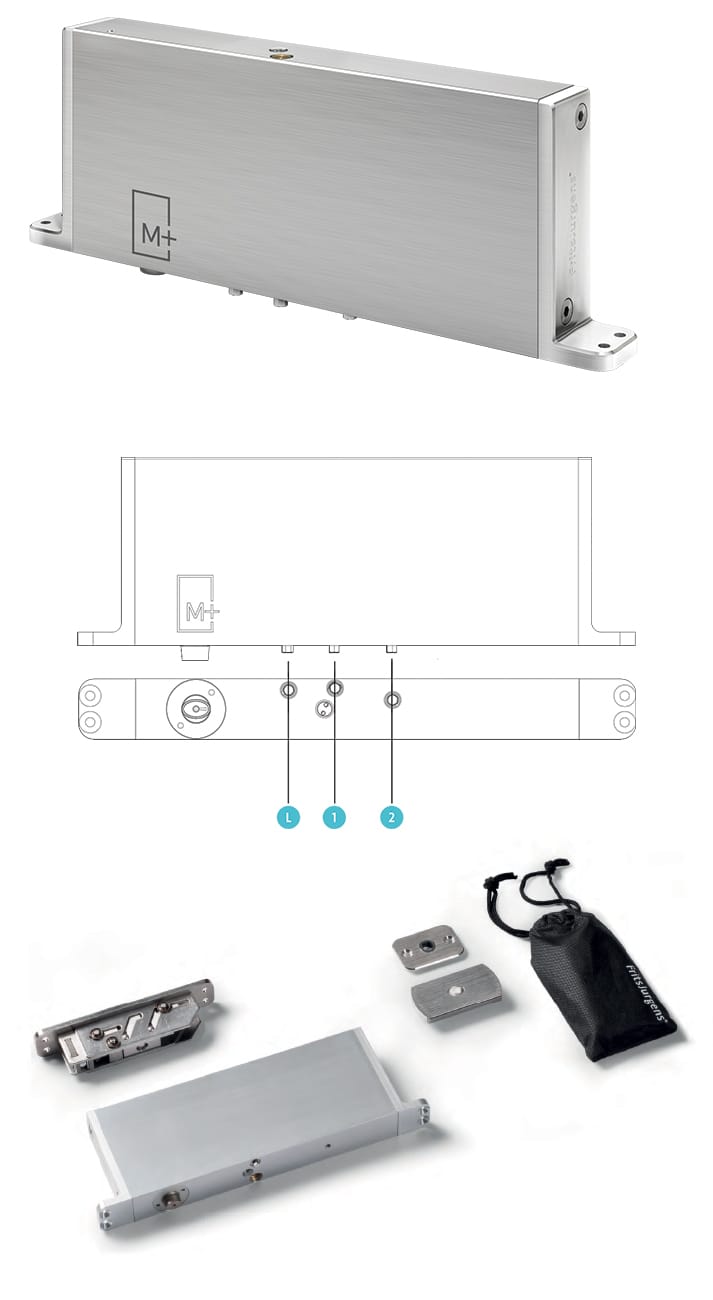

FritsJurgens System M+ Pivot Hinge - 70mm
Taxes included.
Subject to availability by supplier
Couldn't load pickup availability
Description
System M+ is a self-closing pivot system that offers full control over door movement. This adjustable pivot hinge brings Latch Control to ensure proper latching, guaranteed control over the movement of doors from 20 kg to 500 kg, and extra adjustability for the movement of the door. Thanks to Damper Control, 30° Speed Control and Latch Control, the movement of System M+ is fully adjustable.
Weight Classes Guide
To ensure proper movement, System M+ is categorized into specific classes (AA through G). The correct class depends on a combination of your door's weight and the door's width. Please refer to the FritsJurgens System M+ Model Selector matrix to determine the exact class required for your specific door dimensions.
System Specifications
| Door action | Double-action 180° rotation / Single-action 90° rotation |
| Hold positioning | Hold positions 90°, -90° and 0° |
| Weight capacity | 20-500 KG |
| Door width | 400-5000 mm |
| Min. door thickness | 40 & 70mm (AA-E) / 50 mm (F&G) |
| Features | Damper Control, 30° Speed Control, Latch Control |
